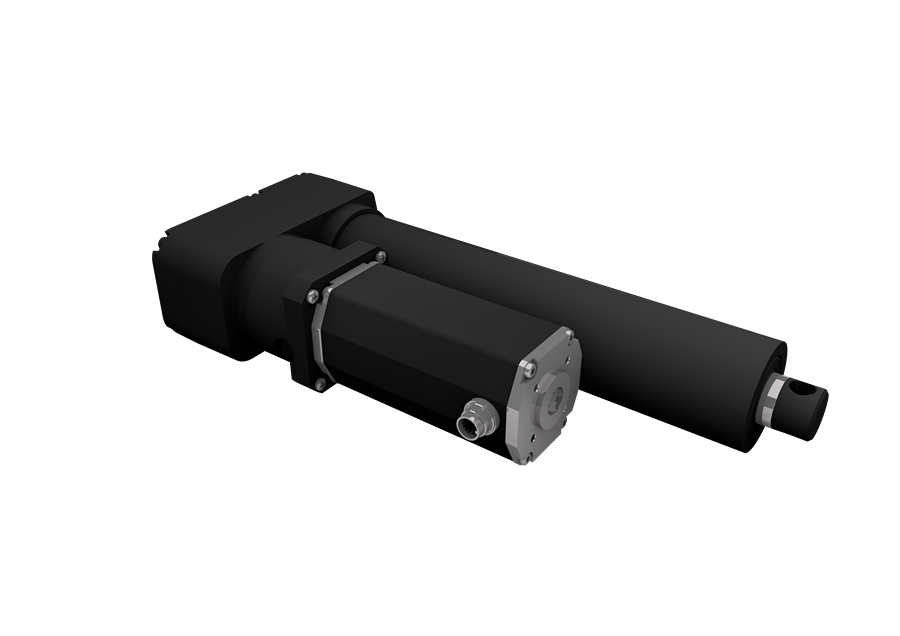

CASM Electric Cylinder


  • Twist protected thrust rod
  • In-Line and parallel motor version
  • Compact design
  • Maintenance free
  • Lead and ball screw version
  • Easy position configuration (PI Motor)
  • Several Bus-Interfaces available
  • Very long lifetime
CASM
3d-models-icon 3d-models-icon-white
Configure suitable gearboxes and download 3D models
CONFIGURATOR
head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US
Full Specifications
GO TO SPECIFICATIONS
CASM
Downloads
GO TO DOWNLOADS
Specifications
        Continuous stall forces                          up to 5400 N*
Peak forces             up to 5400 N*
Stroke lengths            50 – 800 mm
Speed          up to 1 m/s
Acceleration           up to 6 m/s²
Repeatability           +/- 0,01 mm
Supply voltage            12 – 48 VDC
* with gear motor (on request)

Downloads

CASM Overview

Overview
CASM

download-file
CASM combination series

Combinations
CASM

download-file
  • Product Datasheets
  • FAQ´s

CAHB2M/L

download-file

CASM-32

download-file

CASM-40

download-file

CASM-63

download-file
  • Are electric cylinders mechanically compatible with pneumatic cylinders?
    Yes, electric cylinders of the CASM series are mechanically largely compatible with pneumatic cylinders.
