For External Controllers

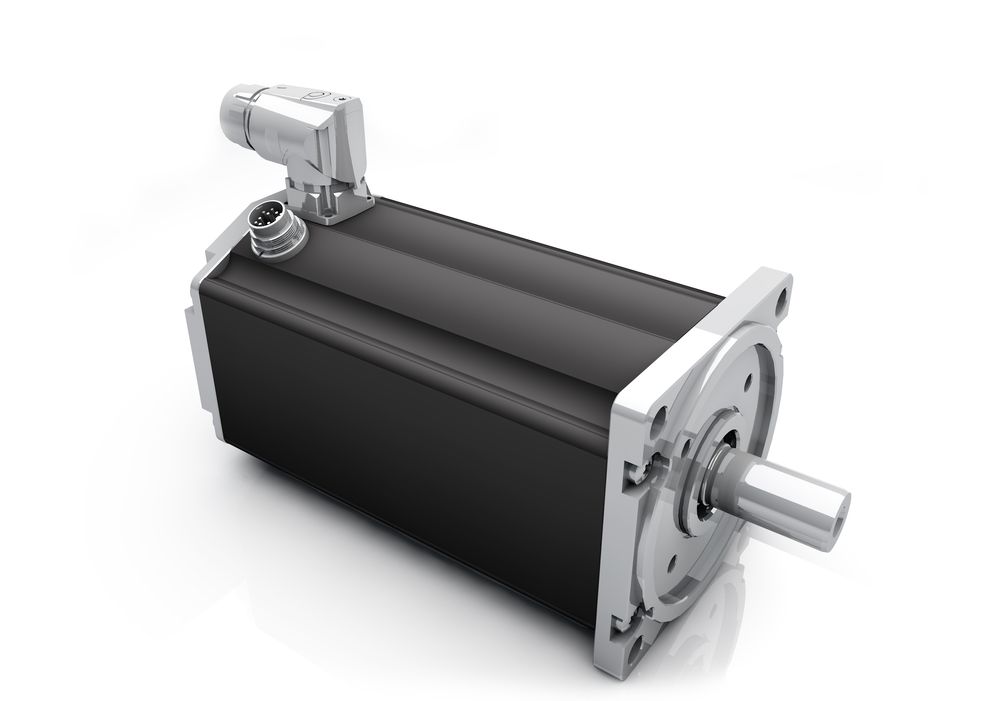

Brushless DC motors, series BG, with integrated Hall sensors for rotor position detection.
Configure suitable gearboxes and download 3D models
CONFIGURATOR
Any questions on this product? Please feel free to contact us!
CONTACT US
Adjustable
Individual solutions for shaft winding, plugs, software or special certificates and testing are our daily business
Dynamic
- Vector-controlled servo technology
- High dynamics thanks to 4-fold overload capacity
Smart
Controllers, software, performance, encoders, interfaces and safety...
Nowhere else is more integration!
Nowhere else is more integration!
Modular
30 million possible combinations of brakes, motors, gearboxes, encoders, controllers…
Specifications
| Applied Voltage | 6 / 12 / 24 / 48 / 60 / 325 | VDC |
|---|---|---|
| Nominal power | 10-1100 | W |
| Nominal torque | 0,017-2,74 | Nm |
| Nominal speed | 2860 -13160 | rpm |
Brushless DC motors, series BG, with integrated Hall sensors for rotor position detection.
- Can be combined with high resolution encoders, brakes and gearboxes in the modular system
- Space-saving design
- Sensorless versions on request
-
Complete Specification Table
Brushless DC motors - 4 stages of functionalities Feedback dCore dGo dMove dPro Sensorless (✔) - - - Hall sensors ✔ ✔ ✔ ✔ High resolution encoder (✔) - - ✔ Controller dCore dGo dMove dPro Block commutation - ✔ ✔ (✔) Sinusodial commutation /
vector control- - - ✔ Speed (open loop) - ✔ (✔) (✔) Speed/ torque (closed loop) - - ✔ ✔ Position - - ✔ ✔ Complex motion profiles - - - ✔ Features dCore dGo dMove dPro Programmable / Stand-alone-operation/ Motion Apps - - - ✔ Robust isolation of bus - - - (✔) Ballast circuit parameterizable - - (✔) ✔ Safe Torque Off - - - (✔) Brake output - - (✔) ✔ Quick start commands - - ✔ ✔ Interface dCore dGo dMove dPro Digital and analogue I/Os - (✔) ✔ ✔ Field Bus (CANopen, RS485, Modbus) - - (✔) (✔) Industrial Ethernet (Profinet, EtherCAT,...) - - - (✔) SSI - - - (✔) Replaces previous versions Hall KI SI, CI (low res.) SI, CI, PI, MI, EC (high res.) ✔ = Standard, (✔) = Optional / on request
