The finding stage is over, now it's time to get started. That's why you won't get theoretical constructs from us, but concrete solutions for more speed, productivity and flexibility.
nexofox supports you with intelligent solutions and services from motor configuration and programming to field IIoT communication, device cloud and smartphone apps - all with the expertise of the market and technology leader in smart BLDC motors.
In addition, nexofox offers you complete solutions for condition monitoring and predictive maintenance for robots or robot systems, or entire production islands from EGS Automation.
dMove / dPro
- Motors with integrated controls, sensors and bus interfaces
- Easy integration into your system
- Application oriented and simple condition monitoring
- Motors perform tasks autonomously
- Communication with other devices/ control or SCADA level
Decentralized & Modular
- Motors can be combined into modules
- Modules can be easily configured and programmed into systems (simple distributed and reusable logic)
- Motors connected to all required sensors and have the necessary logic
- Simple programming on the motors with C
- Adjust your scalable machine concept by modular software design
- Lower cost by eliminating the need of PLC:
- Fewer components to manage and maintain
- Lower cost of installation
- Save time
- Less components that need to be wired
- Shorter and simpler wiring overall
- Leave the engineering and programming to Dunkermotoren
Keep an eye on your global drives right from your desk. (Alarms/ Status/ Real time diagnostics)
React immediately to changing conditions without packing your suitcases. (FW/ SW Distribution, Tuning).
Respond to failures before they happen. Don't worry about it, but leave the work to us and we will minimize your risk of failure. (Predictive Maintenance/ Motor as a Service)
Digital TwinAcquire the motor and the digital twin with all descriptive information.
Your Benefit of Device Cloud & Applications
- Save money and time with our solution. With the remote diagnosis of our Dunkermotors and EGS automation systems, your technicians only need to visit your site in an absolute emergency. For this,we provide you with the right information and spare parts.
- Who knows our products better than we do? Focus on your application leave the diagnosis to us.
- We handle your data responsibly. Already in design, we adhere to the highest security standards.
- We keep our promises - and you get the confirmation in black and white.
Don't leave your technician out in the cold. The smartphone app gives your technicians a head start in knowledge.
- Read out type plate via QR code
- Retrieve manuals etc.
- Retrieve alarms and status of Dunkermotors and EGS automation systems
- Remote control of the Dunkermotors and EGS automation systems
- Submit support requests directly to our service department
We are not mavericks and rely on open standards and architectures. This enables you seamless integration of our solutions as plug-ins into your existing system.

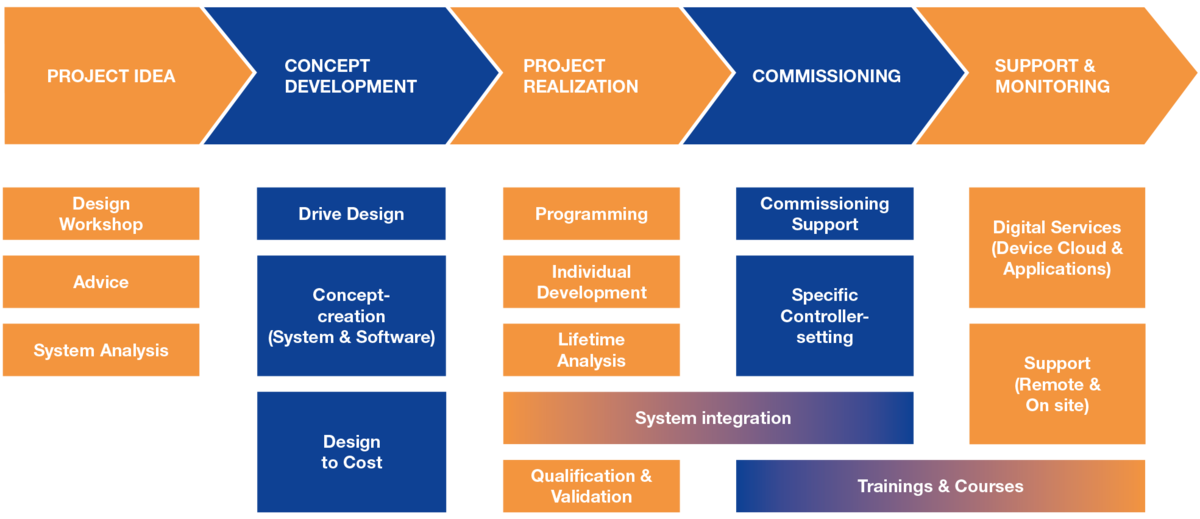

We are at your Side throughout the entire Product Life Cycle
- Draw on our expertise and experience in drive technology throughout the entire product life cycle.
- Our motors are used in a wide variety of applications from a simple rotary device to sophisticated programming to digital services offered through nexofox
- Relieve your engineers and leave the selection, dimensioning and programming of the motors to the team Dunkermotoren and nexofox
Rely on us as your partner throughout your entire project and beyond!
With Dunkermotoren to the Smart Factory
Service & Support
Easy condition monitoring with Smart Diagnostics from nexofox
nexofox - part of an open ecosystem
Industry 4.0 and the "Industrial Internet of Things" represent the next evolutionary stage of automation. While the third industrial revolution was about automating individual machines - which was still easily solved by individual manufacturers - the current development is about networking and automating complete factories or even global corporations. In contrast to classic automation, this can no longer be achieved by individual manufacturers. For this reason, open cross-manufacturer ecosystems are becoming increasingly important. Dunkermotoren | nexofox, a brand of AMETEK Advanced Motion Solutions, recognized this early on and has been developing its IIoT solutions together with strong partners within industrial ecosystems from the very beginning. Be curious to see in which form Dunkermotoren | nexofox gets involved in the different ecosystems and alliances.
The Open Industry 4.0 Alliance is an open ecosystem of a wide variety of manufacturers that has set itself the goal of applying existing standards in the field of automation and demonstrating common approaches to solutions on their basis. The spectrum within the alliance ranges from sensor and actuator manufacturers to machine and plant builders, integration companies, and large software houses, all of which are pulling together to make the vision of Industry 4.0 a reality. The OI 4 sees itself as an implementation alliance and not as a standardization body. Dunkermotoren has already been a member since 2019 and is active in a wide variety of areas within OI 4. To sharpen the image for the interests of its target markets and to get in close contact with them, Dunkermotoren | nexofox is represented in the industry-oriented workgroups Intralogistics and Mechanical Engineering, among others. These workgroups are concerned with the elaboration and presentation of the various use cases in practice and how these can be realized along the entire value chain. In addition to its participation in the two mentioned workgroups, the drive technology manufacturer is proud to have been able to lead its own workgroup the "Component Supplier” since January 2022. In addition to the industry-oriented workgroups, which, to put it simply, develop the requirements for technical implementations, there are various technical workgroups within the OI 4 that, on the one hand, take up the developed requirements and implement them technically and, on the other hand, fill the various layers of the OI 4 architecture with life. In this area, Dunkermotoren | nexofox is actively involved in the design of the Open Operator Cloud and Open EDGE Computing. But more information will follow later.
OI 4 - Workgroup Components Supplier
The workgroup led by Dunkermotoren | nexofox is specifically concerned with the role of smart components such as the motors of the drive technology manufacturer within an ecosystem. The aim of the group is to develop generally applicable approaches and use cases for the integration of smart components across the value chain. Among other things, this involves looking for the best design of digital services for easy integration into existing systems, or evaluating which developments can deliver the greatest added value along the value chain. Interesting approaches include reducing the carbon footprint, predictive maintenance, and the digital twin.
OI 4 - Open EDGE Computing (OEC) Workgroup
This workgroup identifies ways in which assets from different vendors can be connected and interact with each other at the edge level. In addition, the group is concerned with building an ecosystem at the edge level and providing information from the edge to the various sub-models of the OI4 administration shell, also called AAS (Asset Administraion Shell).
OI 4 - Open Operator Cloud (OOC) Workgroup
In the Open Operator Cloud workgroup, the use cases originating from the industry-oriented workgroups (e.g., Components Supplier) are transferred into technical concepts. The implementation is always based on the AAS and is made available to members as a reference implementation. In addition to supporting members in entering a new subject area and helping them to adapt the use case to their own plants, the reference implementation provides a basic framework for specific implementations. In addition to these technical concepts, work is being done in close collaboration with the above-mentioned OEC workgroup on an end-to-end data provision process.
Administration Shell / Asset Administration Shell (AAS)
The administration shell enables cross-vendor interoperability for non-intelligent and intelligent products, thus achieving an end-to-end value chain. On the one hand, the management shell supports the mapping of the entire lifecycle of an asset. On the other hand, the administration shell integrates each asset into the communication world of Industry 4.0 and makes it uniquely addressable and identifiable within this network.
With increasing maturity, the digital twin is becoming more and more tangible and thus also more decisive for the industry and for Dunkermotoren | nexofox. For this reason, Dunkermotoren has been a member of the "Industrial Digital Twin Association" since this year. The IDTA makes an important contribution to the construction, modeling, and standardization of the digital twin and relies, just like the OI 4, on the administration shell or AAS defined by the platform of the Industry 4.0 and the Fraunhofer Institute. The IDTA thus perfectly complements the work of Dunkermotoren | nexofox in the OI 4. Here, the technological foundations for the construct digital twin are laid and standardized, so that it can be reverted to this in realization projects in the OI4. For Dunkermotoren | nexofox, the step towards joining and participating in the IDTA was a logical consequence of the integration of the AAS administration shell in its developments. In this way, Dunkermotoren | nexofox can contribute to the development of standardized sub-models for drives, for example.
The digital twin of Dunkermotoren | nexofox is based on the principle of the administration shell (AAS) and goes far beyond the pure digital image of a motor. The drive technology specialist sees the digital twin as a universally applicable tool, which is particularly characterized by its manufacturer independence. This results in the following advantages for its customers:
- Standardized interfaces make it very easy to integrate the digital twin into existing ecosystems in addition to the stand-alone solution.
- Through models and submodels, even the most diverse assets can be easily integrated with each other.
- The central access structure allows customers easy access to motor-relevant information and/or data anytime and anywhere.
- The possibility to integrate further nexofox services also expands the scope of information and data provided.
- Sustainable and resource-saving use of Dunkermotoren motors and the materials used through optimizations with the digital twin.
With nexofox, Dunkermotoren has its eye on digitalization
"Motor control and data collection are now very easy"
Digitalization promises added value for system operators and component manufacturers, especially in conjunction with the Industrial Internet of Things (IIoT). However, to offer services such as predictive maintenance, it should be easy to collect the data. This is not as easys as it sounds. However, Dunkermotoren GmbH from Bonndorf, a brand of AMETEK Advanced Motion Solutions, is exactly addressing this issue and now offers with its brand nexofox software solutions that make it very easy to implement drive control and data collection, as Markus Weishaar, Head of Systems & Services, explains in an interview with KEM Konstruktion.
Interview: Johannes Gillar and Michael Corban, Editor-in-Chief, KEM Konstruktion
KEM Konstruktion: Dunkermotoren bundles its range of solutions for smart motors under the brand nexofox - what is the objective behind?
Markus Weishaar (Dunkermotoren/nexofox):Digitalization starts now - our customers want to take off. Nexofox offers support for exactly this area, from motor configuration and programming to field IIoT communication to device cloud and smartphone apps with intelligent solutions and services. Our BLDC motors can be configured - even without programming knowledge -, programmed and monitored with the nexofox offering – directly from the desktop. In this way, the user can manage configurations, firmware and MotionCode very easily without having to be on site. Nevertheless, it is ensured that motors and systems receive the necessary attention, and that all information is available quickly and easily in case that the worst happen.
KEM Konstruktion: Does this make the manufacturer of electric motors interchangeable?
Weishaar: Not in the short term - the drives are still the decisive machine elements. Software and IIoT complement these, for example with remote functionalities and decentralized control topologies. In perspective, however, it is certainly true that the greater progress will be made particularly in this area. This was precisely the reason for us to combine our range of forwardlooking software solutions under the brand nexofox and to create a holistic solution offering - covering everything from the use and networking of smart motors to the robot and automation systems of our subsidiary EGS Automation.
Digital services facilitate commissioning and operation
KEM Konstruktion: Can the nexofox portfolio also be used for drives from third-party manufacturers?
Weishaar: This is an option - our control electronics can certainly also control other motors. However, the initial goal is to make it easier for the users of our drives to use them - by making it very easy to implement IIoT functionalities via nexofox. With nexofox, we want to offer digital services for our motors and support customers in operating the motor as well as collecting available data and making it available in automated form in higher-level systems.
For example, a service technician can not only see live whether the engine is working properly, but the data made available can also be used to set up digital services. One of the most interesting topics here is certainly predictive maintenance, but with nexofox we are also laying the foundations for applications that go well beyond this. There are no limits to the variety of ideas that can be developed - but no one must worry about how to read the data digitally from the motor, because we can make them available in a standardized way. In this way, our electric motors can be integrated into digital tools and support targeted interaction with machines in the sense of Industry 4.0.
Control programming becomes easier - especially in distributed systems
KEM Konstruktion: With nexofox, you are targeting both control programming and aspects of the IIoT - does the IIoT topic dominate?
Weishaar: For us, both topics are equally important, and both belong together. In addition to the IIoT, we also see great short-term opportunities in control technology and the question of how "simple" drive control can be implemented, especially in distributed systems. However, great synergies can be tapped above all by combining both topics.
KEM Konstruktion: Can you give an example to make this tangible?
Weishaar:Yes – just think of smaller machines or devices, such as a strapping machine. These usually have 4 to 5 axes, which can already be completely programmed on our motors, each axis separately. This no longer requires a higher-level control system. However, you can still dial in via a laptop and diagnose the machine. All of this can also be easily transferred to AGVs, for example, or to machines and systems of limited complexity in general. With regard to the control architectures, we are completely variable - for example, everything can be programmed on the motor, so that the PLC can be omitted. Of course, it gets interesting with distributed systems according to IEC 61499, where the MotionCode runs distributed over several motors or where the edge is also part of the control - and can thus also map the process logic. The topic of safety is also covered - we can already do Safe Torque Off (STO) today, and in the future Safe Speed and others will be added.
If you then add the topic of IIoT and imagine a service case for an AGV, for example, it is sufficient for the service technician to scan the QR code on the drive and he receives all the information about the drive from the cloud on his mobile device. The scenario can then be extended as desired in the direction of predictive maintenance. Here, we are not primarily concerned about the electric motor, as our brushless motors are maintenance-free. However, each motor is part of a drive unit, and in many cases a gearbox and other mechanical components are also involved. If a fault occurs in the entire unit, this can also be seen in the motor data - for example, if a wheel becomes more sluggish or even blocks completely. Of course, it's helpful to be able to recognize early on that a wheel is becoming more sluggish, so you can take corrective action before it fails.
Communication prefers open standards
KEM Konstruktion: : Does nexofox use proprietary interfaces for communication or is the data made available in open formats?
Weishaar: Openness is our goal - on the control side, support CANopen as well as PROFINET, EtherCAT and Ethernet/IP for a long time already, which are used for communication between the motors. The MotionCode on the motors opens a door: Either it is given each motor its own program or commands are sent back and forth between them, where one can work as a master or all motors can also act as equal partners. Currently, CANopen or PROFINET are mostly used for communication in the direction of the higher-level process logic, but the other interfaces are also possible here.
In the IIoT area, we also fetch the data of our motors via CANopen and PROFINET, then read it out via a software adapter on the edge and make it available in MQTT format. Here we take care that everything is OI4-compliant according to the specifications of the Open Industry 4.0 Alliance and thus all integration options are open. The customer can then collect the information via the OI4 MQTT bus or we can add our cloud adapter on top to transfer everything to the cloud. Here, we also deliberately rely on the Asset Administration Shell (AAS) and thus, again, quite clearly on open standards. We are not the navel of the world - but our engines should be very easy to integrate into various ecosystems via the nexofox solutions.
Getting more out of sensor data
KEM Konstruktion: You mentioned that disturbances in the driveline - such as a sluggish wheel - also show up in the engine data. How much sensor technology does that ultimately require, and which ones do you use?
Weishaar: Specifically, we can record the phase currents as well as speeds, positions, position deviations or even the temperature. Likewise, the error registers can be read out. As you can see, there is already a range of data available. We are also in the process of carrying out tests with the recording of vibrations to be able to draw conclusions about the drive train by means of analytics. With an understanding of physics and mathematics - or machine learning, AI and data science - a lot of information can be extracted. Incidentally, this is also one of the reasons why we are very active in terms of openness in the direction of various ecosystems – whether it is MindSphere World, the IDTA, or the Open Industry 4.0 Alliance, which we joined at the end of 2019. Only if all participants in these ecosystems speak the same language and there is no need for complex integration can the opportunities of digitization be exploited. That's why cross-manufacturer collaboration in the sense of coopetition is also emerging.
KEM Konstruktion: Does this mean that the digital twin is also gaining in importance?
Weishaar: Yes, because it allows me to store the basic data of the drive as a digital twin in such a way that it can be retrieved and used for further tasks. Specifically, for example, information on the CO2 footprint, which then are included into the figures for the complete machine. This can then include values from the production of the drive as well as those from operation. Making such data available is becoming increasingly important.
Security is mandatory
KEM Konstruktion: How does nexofox deal with the issue of IT security?
Weishaar: You can't offer software solutions today without taking IT security into account - IT security is mandatory for us. We already take this into account when developing our solutions and use common security mechanisms - for example, to detect anomalies. In addition, our edge software also offers appropriate access protection, and we are planning to be certified accordingly, for example in accordance with IEC 27001.
KEM Konstruktion: In parallel to the drives from Dunkermotoren, you are also expanding the nexofox range within the group regarding the robots and systems from EGS Automation - what are the next steps here?
Weishaar: Of course, we are gradually building up know-how that we can also apply to the EGS Automation portfolio. There will be an initial demo by end of the year, with which we will show that we can support digitization not only at the drive level, but also at the machine and plant level. In the end, however, it is always a question of the specific application, which is why we are currently investigating this together with the first EGS customers.
